Description

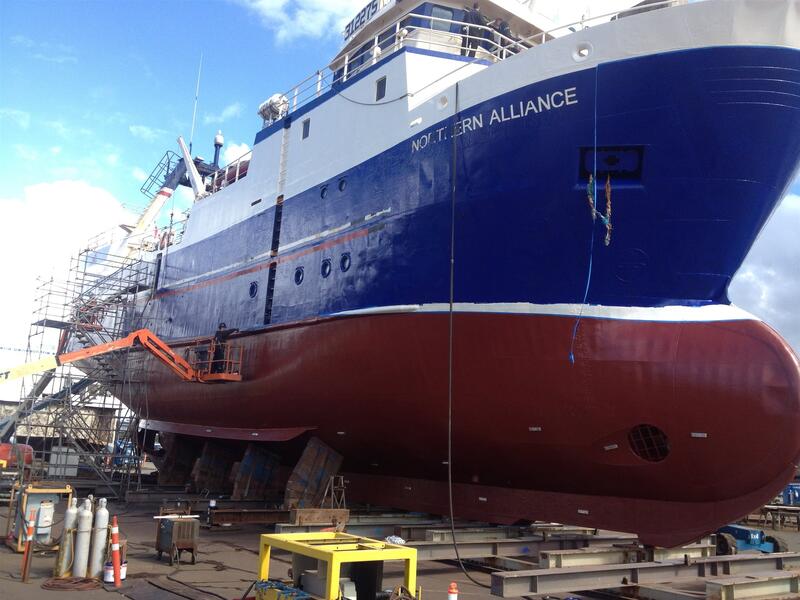

Flag: Canada. Gross Tonnage: 624. Summer Deadweight: 229. We hold 44000 Litres of fresh water and make 3000 litres a day with the water maker. The vessel is in Lloyds class/ Transport Canada. The Northern will go into the shipyard at the end of this month. We will do the 5-year Lloyds major inspection. We will pull all underwater valves and inspect. The prop and shaft will come out for an inspection. The whole hull and tanks will be x rayed, The vessel will be megger tested. We will paint the hull, I will attach a picture from 2 years ago when we left the same shipyard

Specifications

Accommodation

Stove new 2020 (estimated)
The walk-in cooler is half freezer half cooler

Construction

Flag: Canada
Gross Tonnage: 624
Summer Deadweight: 229

We hold 44000 Litres of fresh water and make 3000 litres a day with the water maker
There are spare propeller blades, we rotate them each time we dock and send the set we take off to be inspected and repaired

The vessel is in Lloyds class/ Transport Canada

We just installed a new compressor that only runs the fish hold, It used to run off the main system, now it is a separate system which will allow more power to our plate freezers.

We have replaced all the hydraulic pipes on deck with stainless steel.

The Northern will go into the shipyard at the end of this month. We will do the 5-year Lloyds major inspection. We will pull all underwater valves and inspect. The prop and shaft will come out for an inspection. The whole hull and tanks will be x rayed, The vessel will be megger tested. We will paint the hull, I will attach a picture from 2 years ago when we left the same shipyard

Equipment

The Rapp Hydema auto Trawl is their latest version and installed new in 2020
We installed two new Gilsons for hauling the mid water net. They are both 30 tons each. The brand is Ningbo. There are 4 wing winches from 7 to 11 tone each

There is a net drum, we use a Swan mid water net, (18m opening) with 7.5 metre Thyboron doors, one net and a set of doors goes with the vessel
The Baader 51 the Baader 189 and the Fiskvelar are not there. They were replaced with a Toyo 611 heading and gutting machine for Pelagics, this machine can do 140 fish per minute

The other H/G machine is a Toki which is a Groundfish machine and can do 70 fish per minute. You had these 2 machines reversed in terms of Pelagic or Groundfish

There is no Stapping machine, we use a marel auto sewing machine, there are 2 sewing machines (Fishbein) (we always have at least one spare)

There is only 4 Horizontal plate freezers not 5, They are run by 3, 110 Sabroe compressors, 2 compressors are brand new this year. The vessel also comes with 1 spare compressor which again is new and has not arrived yet from Europe

The Sunwell ice machine is only used for RSW in the factory. We bought a 25 ton a day slush ice maker from Heighland refrigeration in Seattle ($110,000 usd ) The model is Buus,, we use this on deck to cool our catch fast.

Navigation Equipment

There is 1 Simrad ES70 sounder, The ES 80 upgrade is installed
The chart programs are Nobletch and Max Sea
Both Radars are new in the last 4 years

The Sonar is a Furuno.
We installed a second Furuno sounder in 2020,
The Auto pilot is a new, 2020 Simrad A 70
The Headline unit is a Marport with 3 net sensors

Engine(s)

The main engine has already been apart last month, In the last 3 years we have replaced all cylinder liners, pistons, rods, bearing etc, every head has been rebuilt or replaces. The vessel comes with a spare head. Lloyds will sign off on the engine while we are in the shipyard completing the rest of the survey.
Whatever this vessel has needed we have spent the money to make a good ship out of her. All captains have said she is the best sea boat they have ever fished.

Mitsubishi Generator totally rebuilt 2019
We had the Volga gear total apart and rebuilt with new clutches and bearing in 2019
