200′ Canadian Ro-Ro Passenger & Vehicle Ferry

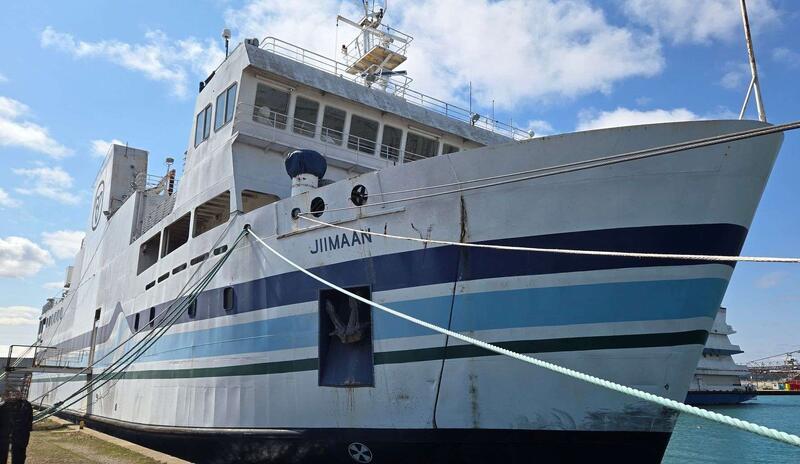

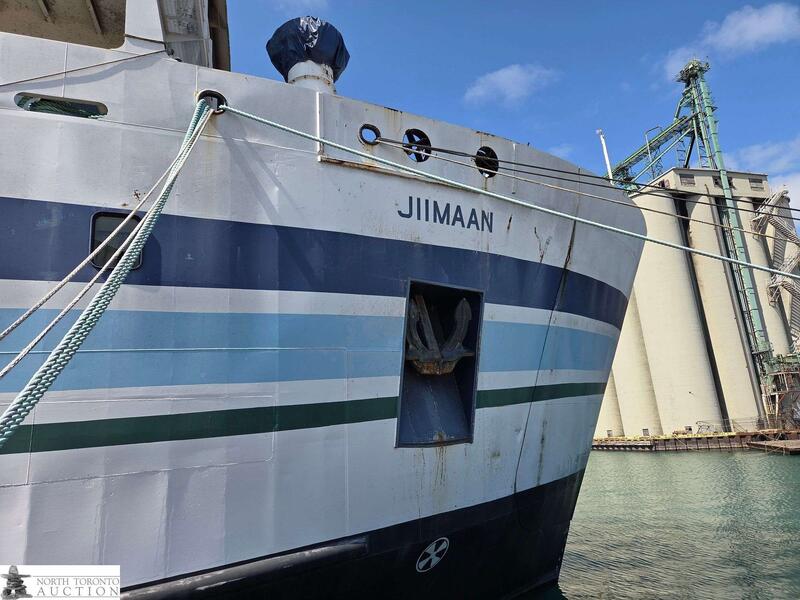

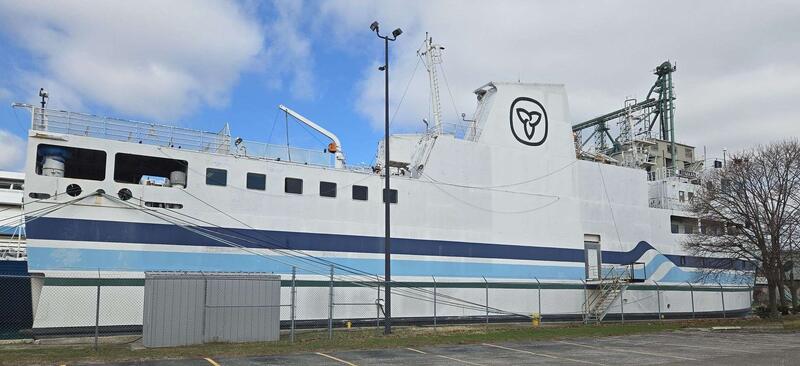

Scruton Marine Inc. is pleased to present the MV Jiimaan, a purpose-built Canadian roll-on/roll-off passenger and vehicle ferry constructed in 1992 by the renowned Port Weller Shipyards in St. Catharines, Ontario.

Purpose-built for demanding Great Lakes conditions, the Jiimaan features all-welded steel construction, twin controllable-pitch propulsion, efficient bow and stern roll-on/roll-off loading systems, and spacious passenger accommodations. Whether returned to passenger service or adapted for an alternative commercial application, this vessel represents a rare opportunity to acquire a proven commercial ferry with an outstanding pedigree.

The vessel is currently located in Southern Ontario, Canada, and is available for inspection by appointment.

Principal Particulars
Vessel Name MV Jiimaan
Year Built 1992
Builder Port Weller Shipyards, St. Catharines, Ontario
Type Roll-On/Roll-Off Passenger & Vehicle Ferry
Length 61.11 m (200.5 ft)
Beam 14.69 m (48.2 ft)
Depth 8.90 m (29.2 ft)
Maximum Draft 3.28 m (10.8 ft)
Gross Tonnage 2,807 GT
Passenger Capacity Up to 385 Passengers*
Vehicle Capacity Approximately 34 North American Passenger Vehicles
Location Southern Ontario, Canada
*Subject to certification and regulatory approval.

Classification
The Jiimaan was constructed to:

Lloyd’s Register 100 A1
Ferry
Great Lakes Service
Ice Class 1D
LMC
UMS

Propulsion
The vessel is powered by:

2 × MAK 6M20 medium-speed marine diesel engines
1,025 kW each @ 1,000 RPM
Twin Finnøy Norg reduction gearboxes
3.25:1 reduction ratio
Twin Finnøy controllable-pitch propellers
This proven propulsion package delivers excellent maneuverability, operational flexibility, and dependable commercial performance.

Electrical Generation
Ship’s electrical power is supplied by:

3 × Caterpillar 3406 diesel generator sets
290 kW each
600 VAC
Emergency power is provided by:

1 × Caterpillar 3304B
75 kW Emergency Generator

Passenger Accommodations & Amenities
Designed for comfortable day-service operations, the Jiimaan offers generous passenger facilities, including:

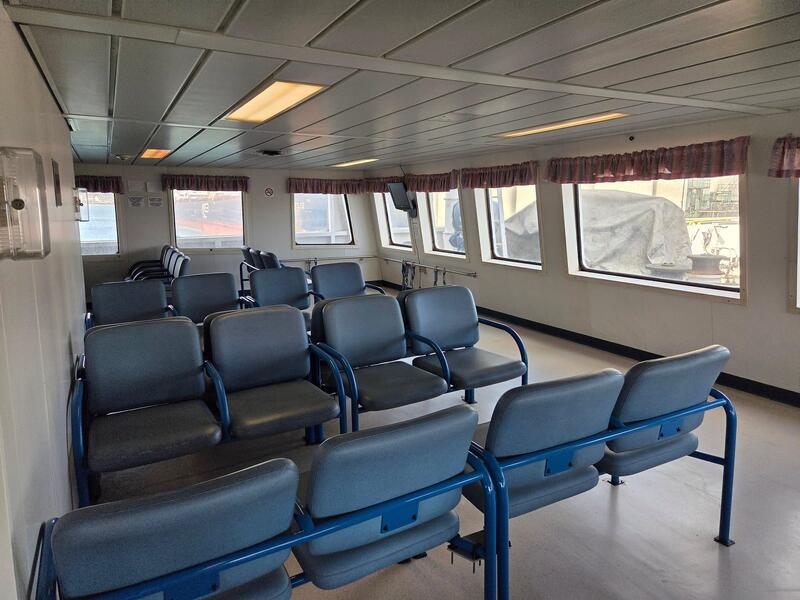

Spacious climate-controlled passenger lounges

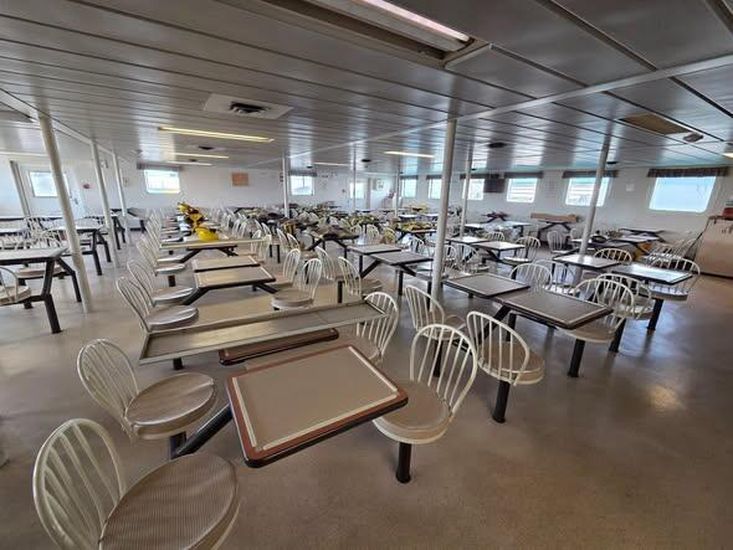

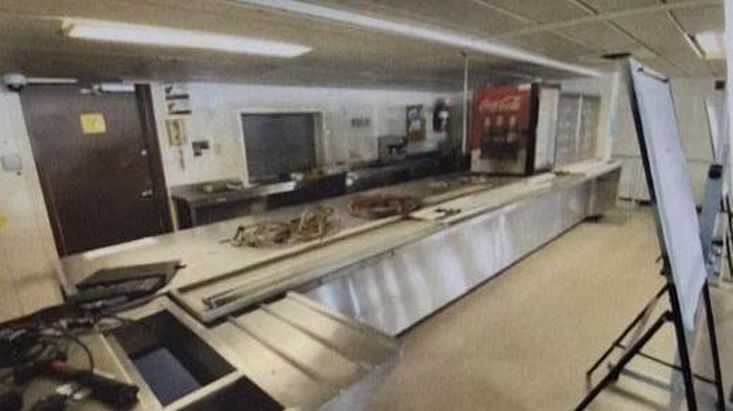

Commercial cafeteria

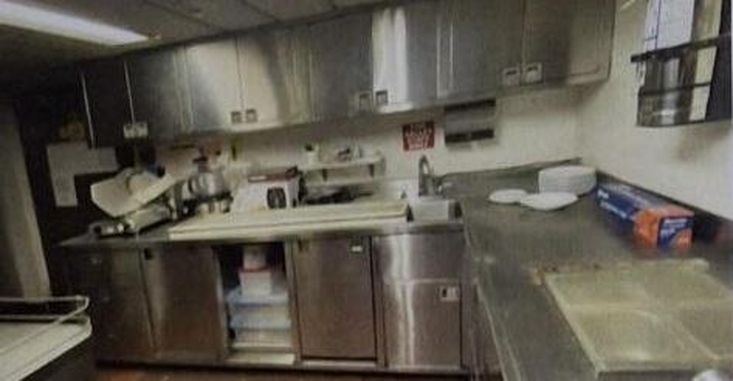

Fully equipped galley
Gift shop / concession area
Exterior promenade deck with passenger seating
Washroom facilities
Accessible passenger loading
Crew lounge

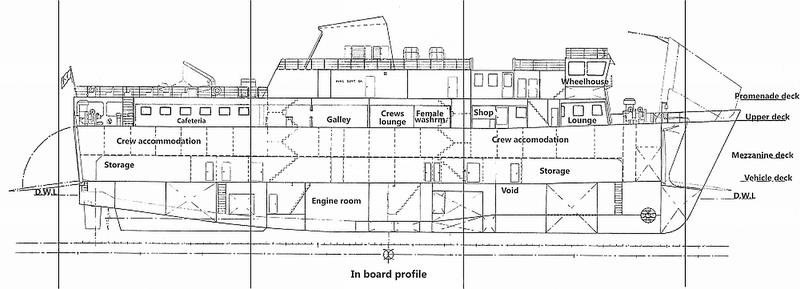

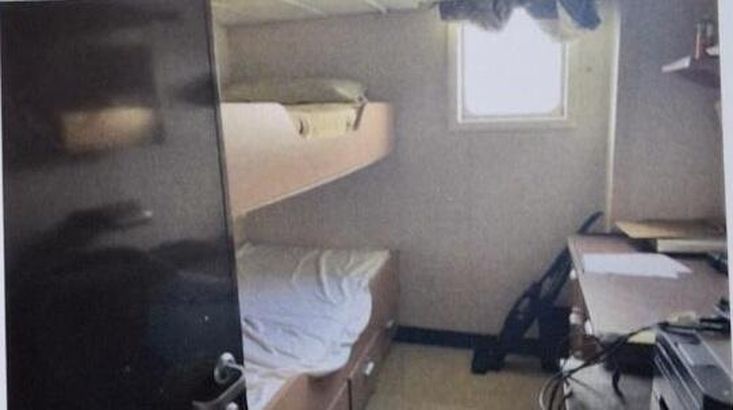

Accommodations for approximately 15 officers and crew on the Mezzanine and Upper Decks
Vessel Features
Hydraulically operated bow visor and loading ramp

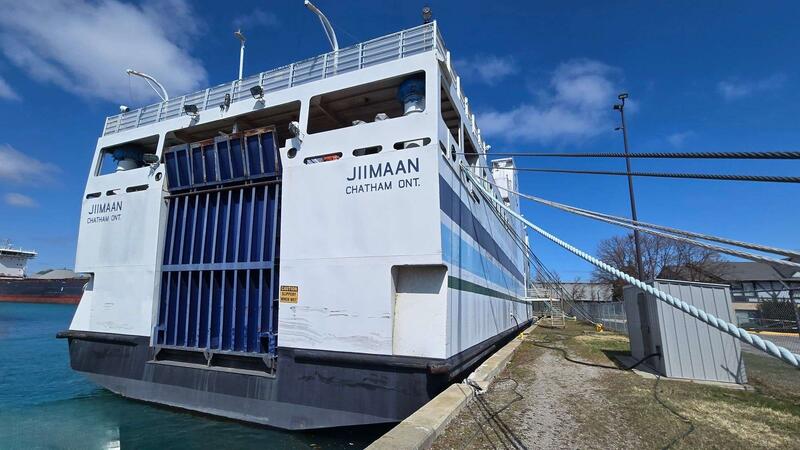

Hydraulically operated stern loading door/ramp
Twin controllable-pitch propellers
Efficient roll-on/roll-off vehicle loading
Commercial passenger lounges
Large exterior promenade deck
Heavy-duty all-welded steel construction
Ice-class commercial design
Proven operating history
Passenger & Vehicle Operations
The Jiimaan was purpose-built to efficiently transport both passengers and vehicles.

Features include:

Capacity for approximately 385 day-trip passengers
Accommodation for approximately 34 North American passenger vehicles
Roll-on/roll-off loading capability for passenger vehicles and commercial traffic
Comfortable Upper Deck passenger salons and lounges
Outdoor passenger seating on the Promenade Deck
Efficient vehicle loading from both bow and stern

Why the Jiimaan?
Commercial ferries of this quality and pedigree rarely become available.

Purpose-built for government service and maintained throughout decades of scheduled operation, the Jiimaan combines proven engineering, heavy-duty commercial construction, and a versatile layout that can support a wide variety of marine operations. Its twin controllable-pitch propulsion system, efficient vehicle loading arrangements, and extensive passenger facilities make it an attractive platform for continued ferry service or adaptive reuse.

Potential Applications
The Jiimaan is ideally suited for:

Passenger ferry operations
Vehicle ferry service
Island transportation
Regional Ro-Ro operations
Tourism and excursion services
Expedition support vessel
Floating hotel or accommodation conversion
Workforce accommodation
Event venue
Emergency response or humanitarian support

Price & Further Information
Price and supporting documentation are available upon request.

Specifications

Disclaimer

Details on our listings are thought to be correct but are not guaranteed. Offers are subject to prior sale, price or inventory change, applicable taxes and withdrawal from the market without notice.
